Marzocchi ECC/ETA Cartridge Levers incl. SHIVER SC silver (2001-2003)
€24.90
incl. VAT
In stock · 15 available

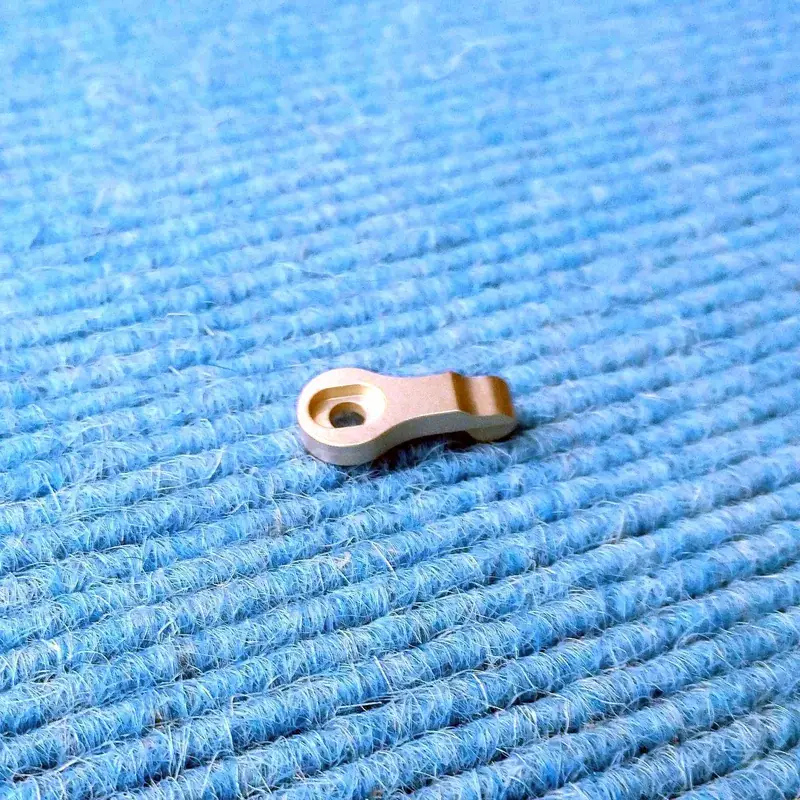

This is about one Marzocchi Lever for ECC / ETA Cartridges and similiar, available in Aluminium silver or black anodized, HQ logo lasered!
Also fit in Early SHIVER SC!
100% compatible, machined using modern High Quality CNC processing!
There are different ones, the first came in silver aluminium 2001 having a nose to the top, later Marzocchi creates some made out of plastic with the nose down. They have the same cartridge base.
This both are made out of Aluminium 60xx, silver or black anodized.
2001 549063FN>B, silver Aluminium, Nase oben
>2002 549063>E, black, plastic, Nase unten
Details :
Material Aluminium 6068
Colour black or silver
logo lasered
Known Compatible Forks :
Edit
Year
Fork Model / Details
Part. No Exploded
Serial Number
Desc
2001
Aftersale 30mm cartridge ECC - for Z1 Bomber c.100 and c.130
2001
Z1 MCR
3
549063FN>B
POMELLO REG.LOCKOUT MTB 2001 - named : 'LOCKOUT KNOB'
2001
Z1 MCR QR
3
549063FN>B
2001
Cartridge Z1 MCR 01 ECC 110/130
from cartridge 703585AQ
2002 - ECC era
2002
Cartridge Z1 FR 02 ECC 110/130
from cartridge 703585AQ
2002
Shiver SC
35
549063>E
POMELLO REG.LOCKOUT MTB 2002 - named : 'LOCK OUT KNOB'
2002
Z-Fly c.80
4
549063
2002
Z-Fly c.100
4
549063
2002
ECC Cartridge ?
2002
MX Spring Cartridge ECC c.100
from cartridge 850298/C
2002
MXC+ECC Air c.80
4
549063
2002
MXC+ECC Air c.100
4
549063
2002
Z1 Free Ride c.110
549063
2002
Z1 Free Ride c.130
549063
2002
Z1 Free Ride MQR 20 c.110
2002
Z1 Free Ride MQR 20 c.130
2002
Z2 Atom Race c.80
3
549063
black, plastic, nose down - from cartrdige 703634AQ/C
2002
Z2 Atom Race c.100
3
549063
2003 : ETA era
2003
MX Comp ETA
4
549063>E
POMELLO REG.LOCKOUT MTB 2002 - named : 'LOCK OUT KNOB'
2003
MX Comp ETA 29"
4
549063>E
2003
MX Pro ETA
4
549063>E
2003
MX Pro ETA 29"
4
549063>E
2003
Marathon S Coil c.85
3
549063>E
2003
Marathon S Coil c.105
3
549063>E
2003
Shvier SC
42
549063>E
2003
Z1 Free Ride
3
549063>E
2003
Z1 Free Ride QR 20 c.130
3
549063>E
2003
Z1 Drop Off
3
549063>E
2003
Z1 Drop Off QR
3
549063>E
2004 : from 2004 there are special ETA Knobs
This both are made out of Aluminium 60xx, silver or black anodized.
2001 549063FN>B, silver Aluminium, Nase oben
>2002 549063>E, black, plastic, Nase unten
Details :
Material Aluminium 6068
Colour black or silver
logo lasered
Known Compatible Forks :
Edit
Year
Fork Model / Details
Part. No Exploded
Serial Number
Desc
2001
Aftersale 30mm cartridge ECC - for Z1 Bomber c.100 and c.130
2001
Z1 MCR
3
549063FN>B
POMELLO REG.LOCKOUT MTB 2001 - named : 'LOCKOUT KNOB'
2001
Z1 MCR QR
3
549063FN>B
2001
Cartridge Z1 MCR 01 ECC 110/130
from cartridge 703585AQ
2002 - ECC era
2002
Cartridge Z1 FR 02 ECC 110/130
from cartridge 703585AQ
2002
Shiver SC
35
549063>E
POMELLO REG.LOCKOUT MTB 2002 - named : 'LOCK OUT KNOB'
2002
Z-Fly c.80
4
549063
2002
Z-Fly c.100
4
549063
2002
ECC Cartridge ?
2002
MX Spring Cartridge ECC c.100
from cartridge 850298/C
2002
MXC+ECC Air c.80
4
549063
2002
MXC+ECC Air c.100
4
549063
2002
Z1 Free Ride c.110
549063
2002
Z1 Free Ride c.130
549063
2002
Z1 Free Ride MQR 20 c.110
2002
Z1 Free Ride MQR 20 c.130
2002
Z2 Atom Race c.80
3
549063
black, plastic, nose down - from cartrdige 703634AQ/C
2002
Z2 Atom Race c.100
3
549063
2003 : ETA era
2003
MX Comp ETA
4
549063>E
POMELLO REG.LOCKOUT MTB 2002 - named : 'LOCK OUT KNOB'
2003
MX Comp ETA 29"
4
549063>E
2003
MX Pro ETA
4
549063>E
2003
MX Pro ETA 29"
4
549063>E
2003
Marathon S Coil c.85
3
549063>E
2003
Marathon S Coil c.105
3
549063>E
2003
Shvier SC
42
549063>E
2003
Z1 Free Ride
3
549063>E
2003
Z1 Free Ride QR 20 c.130
3
549063>E
2003
Z1 Drop Off
3
549063>E
2003
Z1 Drop Off QR
3
549063>E
2004 : from 2004 there are special ETA Knobs
Compatible forks (69)
1997 Z1 Bomber 1999 Z1 BAM 1999 Z1 Bomber BAM 1999 Z1 Drop-Off 1999 Z1 Dual 1999 Z1 QR 2000 Z1 CR 2000 Z1 Drop-Off 2000 Z1 MCR 2000 Z1 QR 2000 Z1 X-Fly 2001 Z1 Drop-Off
