SKU: DZ-AX-R5079-C
Art. Nr.: R5079/C
Marzocchi Fork-Thru QR Axle 1st Gen. MONSTER T - 100% comp.! (1998 - 2002)
€79.95
incl. VAT
In stock · 54 available

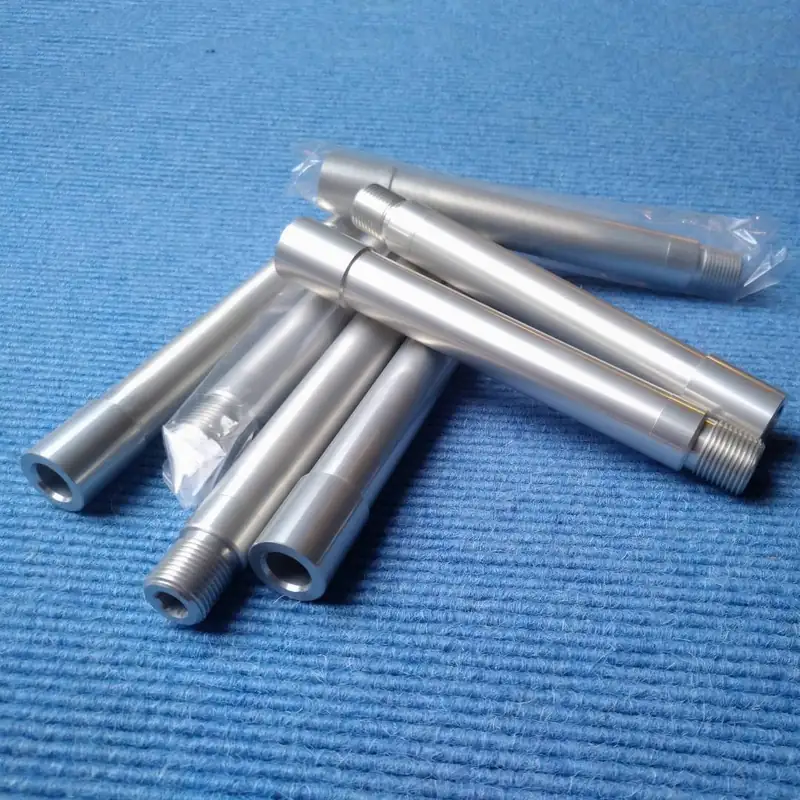

Thrue Axle 20mm for all Marzocchi MONSTER Forks 1999 – 2005, 163mm length. 100% compatible, produced using modern High Quality CNC processing, made out of Air Plane Aluminium 7075!
Diameter : QR 20 mm - tolerance h6
Length : 163 mm length overall
Allen Key Inbus : 6 mm
Material : HQ Air Plane Aluminium 7075
Surface : Professional silver/natural Anodized for better Handling & Corrosion Protection!
Marzocchi Original Art. No. : Monster Z 99 - 2002, YR5079/C, Y 1999-2002

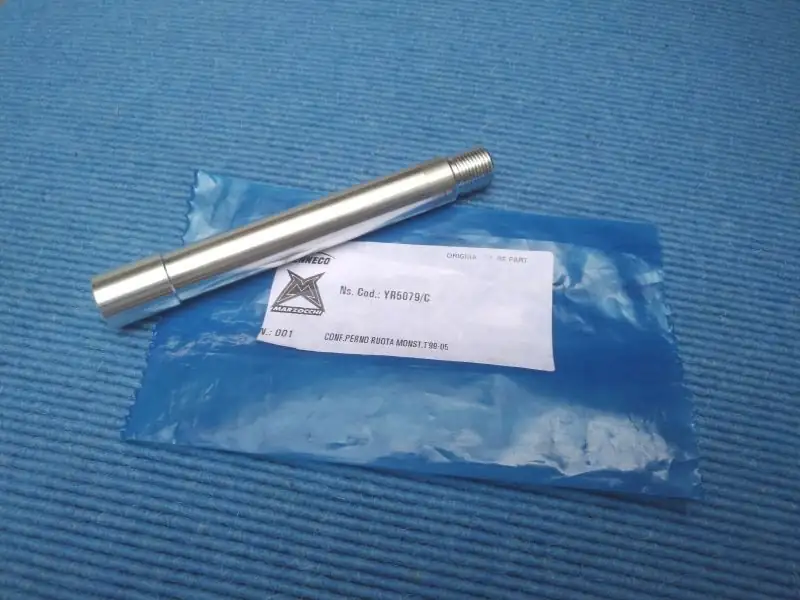

Picture from original as only for comparism and S/N number.
Attention : Check your Hub inner Diameter with some proper measurement tools able to do 0,00x mm! A standard calipper will do only 0,1 up to 0,05mm in the maximum at 20°C!
Check the standard QR20mm diameter as shown in the pictures; that axle should has 20mm h6 which means it's tolerance is from +0,000 up to 0,011 mm.
If your hub has a smaller hole and does not fit you need to ask a tool shop to lathe is a little.
NEVER EVER grind it manualy!!!
If you don't understand please ask for details. I will explain and we will find a solution.🙏🤙
Compatible Forks :
Monster T 1998
Monster T 1999
Monster T 2000
Monster T 2001
Monster 2002
...
