Downhill 1995–1996 Travel: 81mm 26mm stanchions
Marzocchi DH3
The DH3 was Marzocchi's pioneering purpose-built downhill fork of 1995–1996 — one of the earliest production DH-specific forks on the market, built in an era when mountain bike downhill racing was just beginning to define its own equipment category.
The Marzocchi DH3
The DH3 dates from 1995–1996 — a period when mountain bike downhill racing was just emerging as a distinct discipline and very few manufacturers offered purpose-built DH forks. Marzocchi was one of the first to commit fully to this category, and the DH3 was the result.
With 26 mm stanchions and approximately 81 mm of travel, the DH3 looks modest by modern standards. But in the mid-1990s context, it was a serious piece of equipment — stiffer, more controlled, and more serviceable than the repurposed XC forks that most riders were using for DH at the time.
Technical Highlights
26 mm stanchions, approximately 81 mm travel, standard 100 mm QR dropout. Damping by twin oil-bath cartridges. The DH3 is notable for being one of the first forks in Marzocchi’s archive to have dedicated service and parts documentation — the parts lists for the DH3 survive in the Technical Documents section.
Dr-Zocchi Support
This is vintage territory. Seals for 26 mm stanchions from the mid-1990s are difficult to source but not impossible. Contact us if you’re servicing a DH3 — we may be able to source or machine-match the required seals.

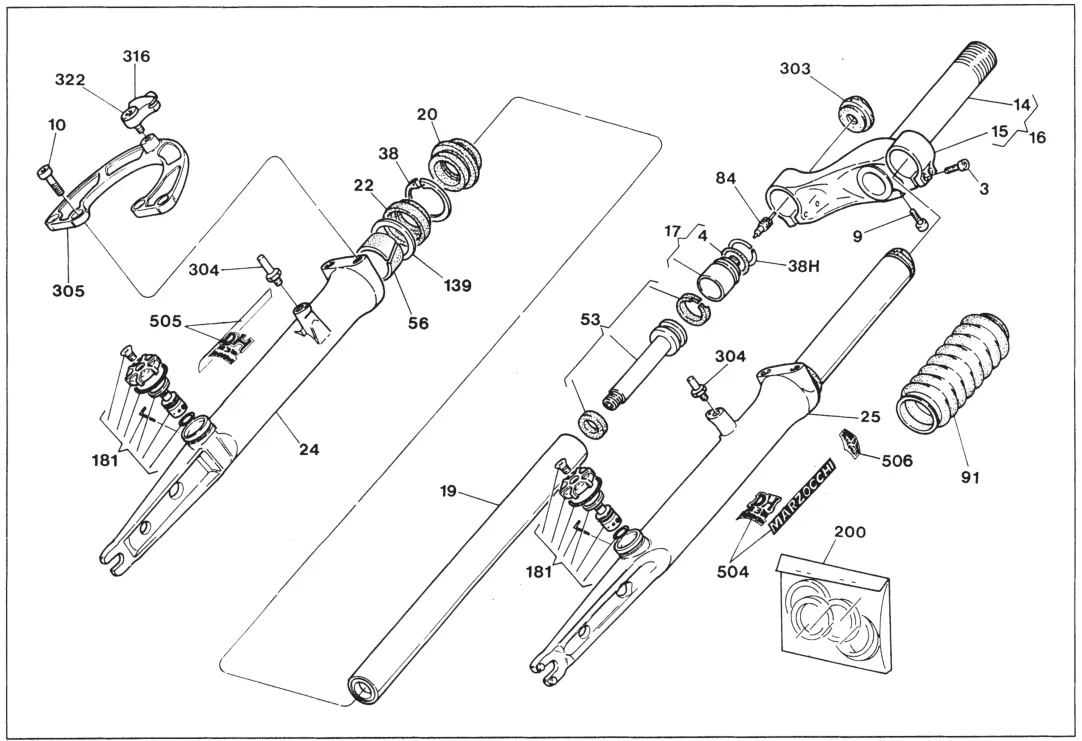

Exploded View
Source: Marzocchi Technical Instructions — DH3 1996
Click image to zoom
Spare Parts List
53 parts · DH3 1996 · Source: Marzocchi Technical Manual
Spare part list — DH3 1996
| Ref. | Code | Description | Category | Q.ty | Shop |
|---|---|---|---|---|---|
| — | 22092012 | This SERVICE-KIT is an fork independed offer. The service-kit package is about an individual Kit for your needs in your special Marzocchi Suspension Fork Project! 🎈🎁🛠💊 You may also need tools or sticker for your fork! Send me your request, show me pictures and we both try to find out what you need and what I have in stock! The price is negotiable and depends on your needs and parts. | Seal Kits | 1 | — |
| — | 5081001 | This is about a massiv Reinforced Aluminium Steerer developed for Marzocchi Dual + Triple Fork Crowns like SHIVER DC & MONSTER’s & other strong single Crown Forks like the 66, Shiver SC etc. It is known to be much stronger than the older reinforced ones (508995 & 508996), which Marzocchi developed for the 1st Shiver DC’s / Monster’s / Jr. T.’s in 2002/2004. It has a special conic design to take all the forces a suspension fork needs to hold in various environment conditions and is the strongest one the Technical Specialists from Marzocchi had ever made in 2006+. This one replaces older Marzocchi steerer 508995 and 508995. Pressing Service / Steerer Exchange possible! 🛠🧷🔧 ✔ | Junior T | 1 | — |
| — | 508995 | This is about an original Alloy steerer Marzocchi developed for Marzocchi Forks in 2002, it is known to be used for 2002 – 2006 Dual- & Triple- Crown Forks like SHIVER / MONSTER / Jr. T @ peoples demand in light weight steerers – check the compatibility list. Update : Better use this updated maximal reinforced Steerer . Pressing Service / Steerer Exchange possible! 🛠🧷🔧 ✔ | Junior T | 1 | — |
| — | 508996 | This is about an massiv reinforced Alloy Steerer developed for Marzocchi 66 and others, it is known to be much stronger than the reinforced one from 2004 (508995 ), which Marzocchi developed for Shiver / Monster / Jr. T. Pressing Service / Steerer Exchange possible! 🛠🧷🔧 ✔ | Junior T | 1 | — |
| — | 532592BZ | This product is about a pair Marzocchi Canti Sockets or Canti Socket Screw from 1993+ – 2001 made out of stainless steel in CNC HQ production! Optional : 3-pin-plate for XCR brakes. It will fit in most of the Marzocchi XC Series Forks and the early Bombers like Z1, Z2 etc. with single slider design and a boltened brace only. If you go with Disc you can close the Canti Sockets nicely using the black Canti Socket Screws. | Seal Kits | 1 | — |
| — | 850565/C | Seal Kit for Marzocchi XC forks with 26mm stanchions. | Seal Kits | 1 | In stock |
| — | 850996 | This product is about a remastered Marzocchi Canti Socket PIN 2006 created out of Stainless Steel / V2A! The other parts I made out Aluminium, nicely anodized black (original was plastic). I’m sorry for the price, but it is about 4 parts and I was not able to do this parts in a cheaper way.🙏 | Seal Kits | 1 | — |
| — | The Air Cap Puller is a wrench for all Marzocchi Bomber Forks using the ‘Schrader’ Automotive valve to handle the Air Cap (pull in/out). It is absolutly recommended to handle the Top Air Cap without damages!! All the older 24 & 26mm Marzocchi XC Forks using this as this are almost all oil/air suspension forks. Some Bombers using this valve also (e.g. Z5). named in Marzocchi manuals as Specific Tool A Item MARZOCCHI Art. no.: 104 Item Art. LARM: 60.32 referenced in YR5008BZ as ‘Air cap puller’ | Tools | 1 | — | |
| — | Air Adapters | 1 | — | ||
| — | For all Marzocchi forks with a 1 1/8″ fork crown (or a 1 1/4″ fork crown using a shim 1 1/8″ –> 1 1 /4″) XC-Series : StarFork, PF1, MX100, XC100, XC 150, XC200, XC300, XC50, XC51, XC200, XC300, XC400, XC500, XC600, XC700, XCR, DH3, … for Bomber Series and others ( please compare dimensions here ) Please consider to buy my own Aluminium Ahead Steerer here!! | Fork Crowns | 1 | — | |
| — | Used in the bolded fork crowns to clamp a different steerer diameter size. 3 sizes are available, please select your size. | Fork Crowns | 1 | — | |
| — | This is an advanced High Quality Remake of the Aluminum Steerer from the 90’s, which have been produced by lathing using Aluminium 7075!! It has a FEM optimised Conic Geometry with more strength & defined Tolerances for boltened crowns only. If you need one for pressing in please drop me a note. It is a much more robust Version than the one you can currently buy on the market. It has a more detailed Head-Set Part Definition. The story about the Advantages & the differences to the newer one can be read here! Pressing Service / Steerer Exchange possible! 🛠🧷🔧 ✔ | Junior T | 1 | — | |
| — | For all Marzocchi forks with a 1 1/8″ fork crown (or a 1 1/4″ fork crown using a shim 1 1/8″ –> 1 1 /4″) This product is about an aluminium steerer in used condition, original Marzocchi or compatible ones. There are several in diffferent lentgh in stock from customers project, forks which I have bought or steerer exchange projects. All aluminium steerer are AHEAD type only and all this are unique ones, please ask for details (length overall!). This part will fit in most of the early Marzocchi Forks like this one : Marzocchi StarFork, PF1, MX100, XC100, XC 150, XC200, XC300, XC50, XC51, XC200, XC300, XC400, XC500, XC600, XC700, XCR, DH3, … for early Marzocchi Bombers Z1 (BAM), Z2 (BAM), Z3, etc. and others Pressing Service / Steerer Exchange possible! 🛠🧷🔧 ✔ | Fork Crowns | 1 | — | |
| — | RESET Blue Seal scraper/wiper rings protect the sensible suspension fork stanchion tube seals and bearings against mud, dust and debris. Competitor for the original seals. Included are only this 2 pieces. This replace the outer dust seals (Marzocchi Part No. 20) on XC600, XC700, XCR, DH3. Werkstoff / Material : Delrin, Polyurethane Original Art.-Nr. 1110 Gewicht / Weight : 12 g Orig. producer: http://www.reset-racing.de | Seal Kits | 1 | — | |
| — | This products are about remastered Marzocchi Canti Sockets for Marzocchi Forks with M-Arch Casting created out of Stainless Stee / V2Al! For security reasons you need this Canti Screw in the m-arch 3-Parts-Forks if you go for Disc!! 1 Set = 2 pcs | Seal Kits | 1 | — | |
| — | This is a brace in custom green eloxal. Will fit in XC600, XC700, XCR and DH3 and fits perfectly to the green DH3 and Verlicchi/Sintesi coloured frames – which had been sold under various brands – from the 90’s. | Brake Arch | 1 | — | |
| — | This is a brace in custom blue eloxal. Will fit in XC500, XC600, XC700, XCR and DH3 and fits perfectly to the blue XC500 and Verlicchi/Sintesi coloured frames – which had been sold under various brands – from the 90’s. Please ask for custom colours, almost everything is possible! | Brake Arch | 1 | — | |
| — | This is about a 100% reproduced Marzocchi Damper Ring Part No. 143 for XC-Series forks XC600 and XC700. 20220119 : It is a reproduction seal made by a seal specialist which produces worldwide for well known automotive companies. The production is ongoing, you can pre-order. Compatible: Marzocchi XC600 (1994+) Marzocchi XC700 (1996) | Seal Kits | 1 | — | |
| — | This is about a 100% compatible Marzocchi Conic Lip Seal orig. Part No. 313 for XC-Series forks XC600 and XC700. Compatible: Marzocchi XC600 (1994) Marzocchi XC700 (1996) | Seal Kits | 1 | — | |
| — | This is a full service kit for DH3 and can be used for XCR also. The XCR might have another damping knob (like the one the DH3 has), please advice or send a picture. This set includes 2 pieces each : 4, 20, 22, 38, 38H, 303 2 O-rings in the damper adjustment assembly 181 (the small one is for sealing, the bigger one to hold the little secure clip) rubber damping ring (320) in assembly 53 Hint: This is a set for XCR / DH3, if your fork is an other fork with 26mm stanchions parts 4, 20, 22, 38, 38H, 302 will fit, but others might not be needed! All other parts might be available on request! All my sold XC SEAL-KIT’s will include an extra XC SCREW-SET for FREE ! | Seal Kits | 1 | — | |
| — | This is a full service kit for Marzocchi XCR from 1995+. Later XCR’s might have another damping knob (like the one the DH3 has), please advice or send a picture. This set includes 2 pieces each : 4, 20, 22, 26, 38, 38H, 303 rubber damping ring (320) in assembly 53 includes original Marzocchi XCR Stickers left/right 🎁👍 screw set 3, 9, 10 Hint: This is a set for XCR, if your fork is another fork with 26mm stanchions parts 4, 20, 22, 38, 38H, 303 will fit, but others might not be needed! All other parts might be available on request! All my sold XC SEAL-KIT’s will include an extra XC SCREW-SET for FREE ! | Seal Kits | 1 | — | |
| — | Steel, chromed. | Stanchions | 1 | — | |
| — | This is about a complete Damper Assembly Part no. 181 in a DH3 and newer XCR. It includes the knob + it’s screw, the base, the inner O-Ring and the outer O-Ring with the stick to fix the knob in der fork. | Seal Kits | 1 | — | |
| — | This the deal: I have several of this forks in my boxes and lots of spare parts. If you buy one, I will take the most best parts I have and rebuild the fork from scratch using original Marzocchi seals, new stickers, screws and a steerer of your choice. This is a service which you never will get again on this world! This fork comes with a 1 1/8″ or 1 1/4″ crown, which means you can also use a 1″ steerer in it by using a aluminium shim! If you want to check fork details or fork dimensions please consult the manual section or drop me a note . All my sold Marzocchi fork rebuilds will contain an extra Seal-Kit* for free! (* 2x inner oil seal & 2x outer dust seal) | Services | 1 | — | |
| — | Sticker pair for Marzocchi DH3 (1996+). | Decals | 1 | — | |
| — | Tools | 1 | — | ||
| — | Knobs & Dials | 1 | — | ||
| — | All Marzocchi Models with 24mm Stanchion tubes: Marzocchi Models: XC500 / XC400 / XC50 / XC51 / XC50H / XC300 / XC250 / XC200 / XC150 / XC100 / MX100 / Star Fork / PF1 / StarFork etc. and branded forks aká Kästle HDB 01, Fuchs Sport, Scott’s Xtrashocks etc. Hint: This is a set for XC500, so you might need not all of this included parts for your older 24mm fork! If you own a XC400 or other fork with oil/air separator plug another kit might be the better choice for you! All my sold XC SEAL-KIT’s will include an extra XC SCREW-SET for FREE ! | Seal Kits | 1 | — | |
| — | This one is one of my best tools I ever had. Don’t waste your time and money to buy Hex Key (Inbus) sets, you will always loose! You need a 4 mm T- Handle Hex Key for the 2 screws (2 each side) to fix the stanchion tubes into to crown – all XC forks except DH3. | Tools | 1 | — | |
| — | Ahead Steerer Cap 1 1/8″ Marzocchi comp. ‘Fear Nothing’ in 9 colours available. High Quality Logo Lasered in the old style!! Orders >=200€ & my Fork Rebuilds will be added a black Ahead Cap ‘Fear Nothing for FREE! | Seal Kits | 1 | — | |
| — | Ahead Steerer Cap 1 1/8″ Marzocchi comp. ‘RIDE FAST – DONT DIE’ in anodized black + High Quality Logo Lasered in the old style!! Remember Josh Bender on his legendary Canfield Secret Weapon ?? Check the photo series here . Josh created that Freestyle on bikes using special Fully’s with Super MONSTER’s which fit’s perfect to Marzocchi Marketing in the early 20’s. | Seal Kits | 1 | — | |
| — | Ahead Steerer Cap 1 1/8″ Marzocchi comp. ‘RIDE FAST – FEAR NOTHING’ in anodized black + High Quality Logo Lasered in the old style!! Remember Josh Bender on his legendary Canfield Secret Weapon ?? Check the photo series here . Josh created that Freestyle on bikes using special Fully’s with Super MONSTER’s which fit’s perfect to Marzocchi Marketing in the early 20’s. | Seal Kits | 1 | — | |
| — | Marzocchi Brake CAM for XC Series 1994 – 1997 to handle the brake cable, mounted on the brace, including a suitable screw. Available in black or titanium. | Canti Posts | 1 | — | |
| — | This Package is about all you need to REBUILD your Marzocchi Retro Fork DIY!! 🎈🎁🛠💊 The Kit includes : 1x COMPLETE Rebuild-Kit – includes all Seals, O-Rings, Clips, Caps (if available), Bits etc. 1x additional Marzocchi Seal-Kit !! – for your next DIY Self-Service! 🎶🎈 1x Air Cap Puller – pull the sensitive aluminium Air Cap out of the stanchion without damages! 1x Oil Seal Press-In Tool – press your Oil Seal vertically into the slider! 🦿 1 Pair of new stickers! 💎💖 a complete Set of Screws! Service Manual (PDF download) Select the Kit you need for your Fork Project (others on request!) : | Seal Kits | 1 | — | |
| — | This package is about parts you need to SERVICE your Marzocchi 26mm with 2x SEAL-Kit & 2 Tools🎈🎁🛠💊 ✨✨ Buy this Package for your 26mm Marzocchi Fork and save about 30%!! ✨✨ | Seal Kits | 1 | — | |
| — | This package is about parts you need to SERVICE your Marzocchi 24mm with 2x SEAL-Kit & 2 Tools🎈🎁🛠💊 ✨✨ Buy this Package for your 24mm Marzocchi Fork and save about 30%!! ✨✨ | Seal Kits | 1 | — | |
| — | … this item has been produced in different weight-categories, but information about had been lost. | Springs | 1 | — | |
| — | This one is one of my best tools I ever had. Don’t waste your time and money to buy this everywhere-available-cheap-chromed Hex Key (Inbus) sets, you will always loose! This tool has 3 (in words: THREE) bits! You need a 5 mm T- Handle Hex Key for the 2 screws to fix the stanchion tubes into the fork crown (all the older Marzocchi forks form the 90’s) and for the 4 screws (2 each side) to fix the stanchion tubes into to crown (DH3). | Tools | 1 | — | |
| — | For most of the Marzocchi forks: StarFork, PF1, MX100, XC100, XC 150, XC200, XC300, XC50, XC51, XC400, XC500, XC600, XC700, XCR, DH3, … for Bombers and others | Steerer | 1 | — | |
| — | Original Marzocchi DH3 User-Manual, PDF file (ca. 700 kB) | Services | 1 | — | |
| — | Stanchions | 1 | — | ||
| — | Bushing Kits | 1 | — | ||
| — | … | Services | 1 | — | |
| — | For most of the Marzocchi forks: StarFork, PF1, MX100, XC100, XC 150, XC200, XC300, XC50, XC51, XC200, XC300, XC400, XC500, XC600, XC700, XCR, DH3, … for Bombers and others | Steerer | 1 | — | |
| — | This Seal-Kit consists out of 2 Dust- & 2 Oil-Seals, original ones OR 1:1 absolute compatible ones from 100% quality! It will fit in ALL Marzocchi Models from the 90’s using 26mm Stanchion Tubes : XC600 XC700 XCR DH3 and branded forks aká Kästle HDB 01, Fuchs Sport a.o. Please check out my Marzocchi Full Repair Kit XC600 / XC700 or my Marzocchi XC-Series REBUILD-KIT ‘COMPLETE’ including all Parts & Stickers & 2x (!) Set of Seals & Tools! All my sold XC SEAL-KIT’s will include an extra XC SCREW-SET for FREE ! | Seal Kits | 1 | — | |
| — | Air Adapters | 1 | — | ||
| — | This product is about an original Marzocchi Canti Socket from 1993+. It will fit in most of the Marzocchi XC Series Forks and the early Bombers like Z1, Z2 etc. with single slider design and a boltened brace only. | Seal Kits | 1 | — | |
| — | You are a rebuilding some older Marzocchi forks XC-Series or Bomber and you need some special kit so finish the rebuild?? Please ask for a detailled service kit which will fit your needs or send me your Part list! I’m always open for a special deal which fit your needs. | Seal Kits | 1 | — | |
| — | Replacement Crowns for all Marzocchi XC forks from the 90’s : This Shop Offer is about the very rare boltened Fork Crowns like StarFork, PF1, MX100, XC100, XC 150, XC200, XC250, XC300, XC50, XC51, XC50H, XC400, XC500, XC600, XC700, XCR, DH3 and brand forks which based on Marzocchi Forks like GT, Kästle HDB0x, Giant EGS, Fuchs Sport, Scott Xtrashocks etc. All my sold Fork Crowns will include a SCREW-SET for FREE! | Fork Crowns | 1 | — | |
| — | For all Marzocchi XC Series Forks from the 90’s using 26mm Stanchions : XC600 XC700 XCR DH3 All my sold Fork Crowns will include a SCREW-SET for FREE! | Fork Crowns | 1 | — | |
| — | This Product is about a used Replacement Spare Crown for all Marzocchi XC forks from the 90’s using 24 or 26mm stanchions : StarFork, PF1, MX100, XC100, XC150, XC200, XC250, XC300, XC50, XC51, XC50H, XC400, XC500, XC600, XC700, XCR, DH3 and brands based on Marzocchi forks like GT, Kästle HDB, etc. …. If you are in need to exchange the steerer please consider using my pressing service offer . All my sold Fork Crowns will include a SCREW-SET for FREE! I nee to know the expected steerer length, please! | Fork Crowns | 1 | — | |
| — | This is about a 1:1 remastered Marzocci Oil Seal Insertion Tool for 26mm XC Series Forks. It helps to press the 26mm Oil Seal verticaly into the slider without damaging! To use it for all XC-Series 26mm Forks from the 90’s : XC600, XC700, XCR, DH3. It is a very handy Tool made from aluminium. Use it with a plastic hammer. There is also a 24mm version available . | Tools | 1 | — | |
| — | This is a full Service-Kit for the given fork names. Included Parts : 20, 22, 303, 9, 10, 4, 38, 38H, 312, 313, 3. You might consider the ‘ Complete Rebuild-Kit ‘ including also Tools, 2 Sets of Seals and NEW Stickers as well! All my sold XC SEAL-KIT’s will include an extra XC SCREW-SET for FREE ! | Seal Kits | 1 | — |
Technical Documents
Marzocchi factory documents for this fork model
Parts for this fork
Need to rebuild your Marzocchi DH3?
Dr-Zocchi stocks seal kits, bushings and spare parts — produced to original specifications.
